Double fall prevention anchor
- safety
- Conservation and maintenance company
- Enhanced safety
overview
Sleeve-driven anchors prevent lighting fixtures from falling.
While conventional base plates require three components per location, the CN Tie Wire Anchor only requires one. Because it uses a sleeve-driven system, there is no need to tighten nuts. This makes the installation method simple and efficient, and there is no need to worry about forgetting to tighten nuts or them coming loose, making it possible to standardize installation work.
This ease of installation makes it easier to implement double fall prevention measures for lighting fixtures, contributing to improved safety inside tunnels.
point
Features
-

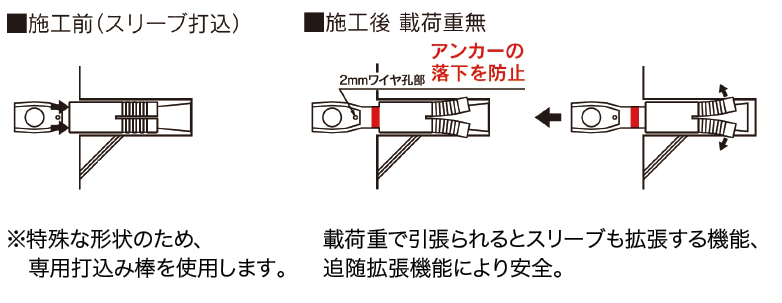

Sleeve drive-in type
It uses a sleeve drive type, so no nuts are required for installation. In addition, the follow-up expansion function ensures safety.
-

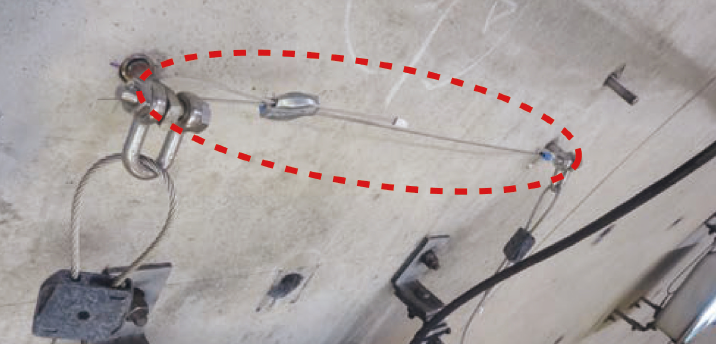

Anchors can be connected to each other
A small diameter hole (for 2 mm wire) is provided at the bottom of the opening. By passing a wire through this hole, tie wire anchors can be connected to each other, providing an even stronger safety measure.
