High-strength fiber rope "ILOCK"

Sales Department, Central Japan Highway Engineering Nagoya Co., Ltd.

TEL052-212-4770

Utility model registration No. 3226707

Versatile rope made from high-strength fibers

  • safety
  • Conservation and maintenance company
  • Enhanced safety
  • Efficiency and labor savings
  • Cost reduction

Features

A high-strength fiber rope that uses polyarylate fiber as a material and has dimensional stability, abrasion resistance, and cut resistance. Carbon black is added to the fiber raw material, and by applying a special resin treatment to the surface of the rope, it has excellent weather resistance. In addition, it is safe because it does not generate cyanide gas when burning.

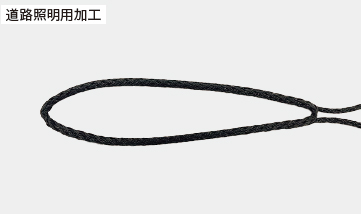

Not only can it be handled in the same way as a general rope, but it can also be used as a fall prevention rope for facility equipment in place of stainless steel wire. In addition, the terminal part can be easily processed on site without using metal fittings, making it easy to use.

point

specification

  • 8mm black type

rope material

polyarylate fiber
(black type)

initial strength

26.0kN (catalog value)

Standard strength

11kN (5 years service life)
*Equivalent to SUS wire 4mm

Nominal diameter

8mm

Weight

24.2g/m

  • 4mm black type

rope material

polyarylate fiber
(black type)

initial strength

24kN (catalog value)

Standard strength

5kN (service life 5 years)

Nominal diameter

4mm (processed part 8mm)

Processing length

300mm~500mm stretchability

Weight

28g/piece
