With self-propelled phased array ultrasonic flaw detection equipment
Detects "cracks" in steel finger joints.
- inspection
- Conservation and maintenance company
- Construction consulting company
- Efficiency and labor savings
overview
This technology detects cracks that occur at the base of the fingers by moving a phased array ultrasonic flaw detector equipped with two probes over the top surface of a steel finger joint.
*This technology was jointly developed with Mitsubishi Heavy Industries Power Inspection Co., Ltd.
point

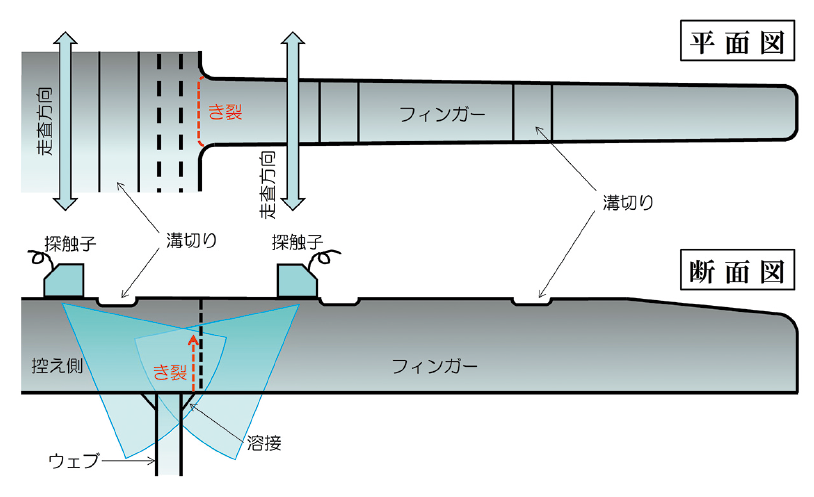

Crack detection mechanism
- The phased array ultrasonic flaw detector is equipped with two transducers, one on the finger side and one on the back side.
- By simultaneously inspecting cracks from two directions in succession, even the smallest cracks are not overlooked.
- By attaching a sled-type probe holder, flaws can be detected by smoothly crossing between the fingers.
- The rack rails can be extended, allowing for any length of investigation. The rack rails are also magnetic, making on-site setup easy.
- Water is used as the contact medium, and the site can be left quickly after measurement.
