RISクロルフィックスエース(左官用)・クロルフィックスショット(湿式吹付け用)|技術商品情報|NEXCO中日本グループ

NEXCO CENTRAL Group technical products

Repair

RIS Chlorfix Ace (for plasterers)

Chlorfix shot (for wet spraying)

NEXCO Structural Construction Management Guidelines Compliance with quality standards for cross-section restoration materials by plastering and spraying methods

中日本高速技術マーケティング(株)
技術営業部

TEL 052-228-8151

Reduces deterioration of reinforced concrete due to salt damage and cracks in mortar

塩害対策として、劣化因子である塩化物イオンを固定化し、無害化する塩化物イオン固定化材を予め混和した断面修復材、及び長距離圧送化を可能とした湿式吹付け工法用の材料を用意しています。

RIS Chlorfix Ace (for plasterers)

Features

  • A polyacrylic acid ester (PAE) -based powder polymer blended type that exhibits high adhesion strength and bending strength, and also suppresses the penetration of water, carbon dioxide, and chloride ions, which are deterioration factors for reinforced concrete structures.
  • Because it is a premix type manufactured under strict quality control at the factory, good mortar can be obtained simply by adding water and kneading on site.
  • A special fiber-mixed type that suppresses the occurrence of cracks, which greatly affects the durability of mortar.
  • Standard coating thickness is about 10 to 20 mm per layer. It has appropriate viscosity for ironing and good workability.
Click here for details

Chlorfix shot (for wet spraying)

Features

  • Long distance mortar pumping (~ 100m) is possible.
  • The thickness of the wall can be about 100mm per layer and the ceiling can be about 50mm thick, and high mortar discharge and other construction performance can be maintained and construction efficiency can be improved.
  • Polyacrylic acid ester (PAE) -based powder polymer-mixed type that also suppresses the penetration of water, carbon dioxide, and chloride ions, which are deterioration factors for reinforced concrete structures.
  • A special fiber-mixed type that suppresses the occurrence of cracks, which greatly affects the durability of mortar.
Click here for details

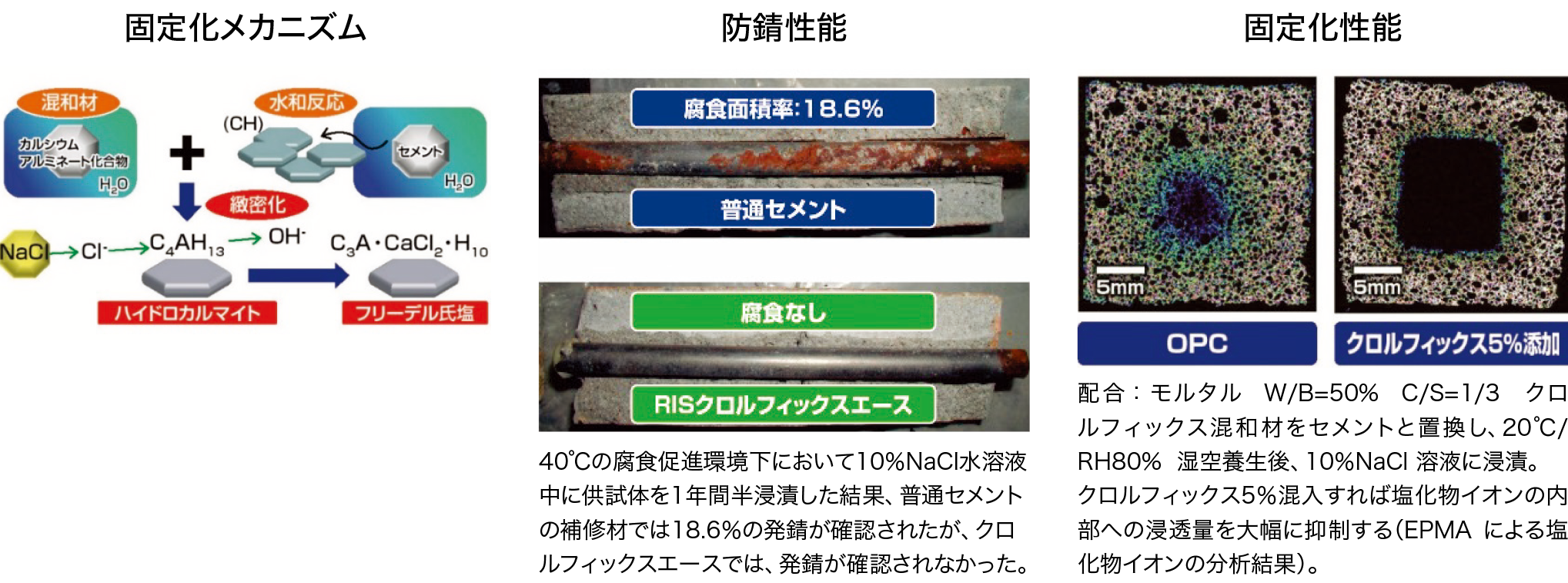

Anticorrosion effect

  • 40℃の腐食促進環境下において10%NaCl水溶液中に供試体を1年間にわたって半浸漬した結果、普通セメントの補修材では18.6%の発錆が確認されましたが、RISクロルフィックスエースでは発錆が確認されませんでした。

Achievements (sales / construction / introduction)

2020年度: 6m3

2021年度: 5m3

2022年度:46m3
